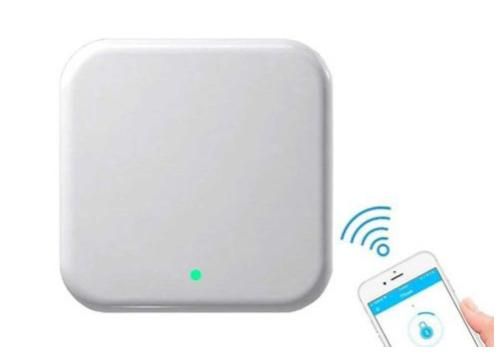

Optional Gateway designed to suit LOCKTON ELEV64 Smartlock. The G2-GATE enables communication with your Smartlock via Wi-Fi (G2) or ethernet (G3), allowing you to Change PIN Codes, Add Fingerprints, Create Temporary PIN Codes, Review Audit Trails and other management tasks from anywhere with an Internet connection via the TT Lock App.

The gateway has no limitation on the amount of smartlocks that it can operate.

Please refer to installation instruction manual for ELEV64 Smartlock on how to pair up the Gateway with the Smartlock.

PRODUCT SPECIFICATION

• Dimensions: 70 x 70 x 26mm
• Network: WiFi 2.4G (G2) or Network interface RJ45 (G3)
• IEEE Standard: 802.11 b/g/n
• Power Connection: Type C USB
• Power Input: 5V/500mA
• Bluetooth Signal Range: 10-15 metres
• 3 Year Warranty (*)
